Product Details:
|
| Type: | Dome Fiber Optical Splice Closure | Working Temperature: | -40℃~+85℃ |
|---|---|---|---|
| Relative Humidity: | ≤85%(+30℃) | Color: | Black |
| Material: | PP,ABS | Single Weight/kg: | 5.0-5.5Kg |
| High Light: | FTTH Optical Splice Closure,FTTH Fiber Optic Joint Closure,Dome Fiber Splice Enclosure Box |
||

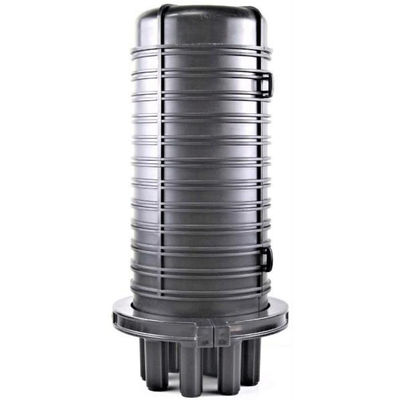

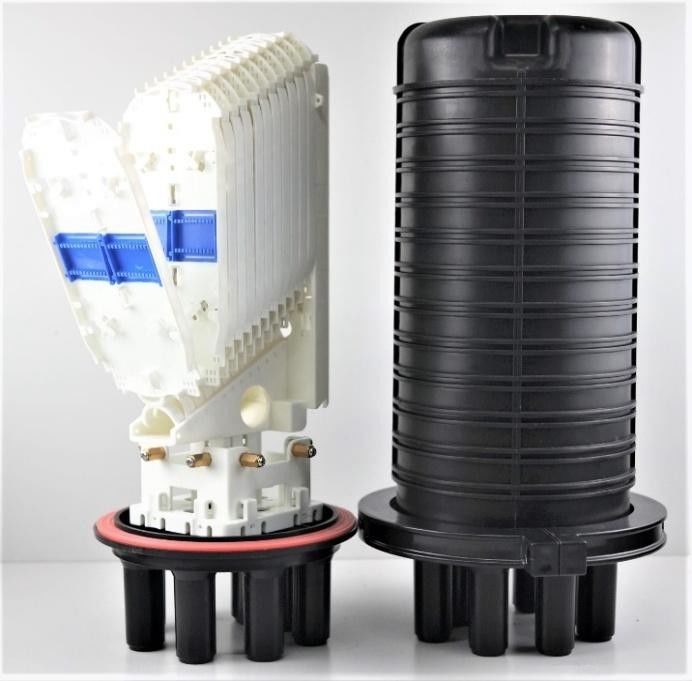

Cheap Price FTTH Optical Splice Closure Dome Fiber Optic Joint Closure Fiber Splice Enclosure Box
FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features with ruggedness, which is tested under harshconditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
Features
1 The body is made of high quality engineering plastic with good strength;
2 With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.
3 Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiberstorage space.
| Protection Grade | IP68 |
| Material | PP,ABS |
| Entry Ports | 7(1Oval(60X80Mm)+6X26Mm |
| Maximum Trays | 12 Trays |
| Maximum Cores | 288(Singlel Core) |
| Buffer Storge | Basket Bracket Mount |
| Dimension (Hxd) | 505Mm *200 Mm |
| Environment Temp | :-30℃~+60℃ |
| Pressure | 70Kpa~106Kpa |
| Sealing Port | Heat Shrinking |
| Quality Warrenty | 2 Years |
| Life Span | More Than 25 Years |
| Weight | 5.0-5.5Kg |
| Package(Mm) | 6Pcs/Carton |
| Carton Size | 580*480*650 |
| Inner Box Size | 565*240*240 |
| Suitable For | Duct ,Overhead,Bury |
