Product Details:
|
| Product Name: | Mini OTDR | Network: | Wireless Lan, Bluetooth, Wired LAN, ONVIF, TCP, Ip, POE, GPRS, Wifi, 4g, GSM, 3G, Wiegand, Other |
|---|---|---|---|
| Optical Connector: | FC/UPC(Interchargeable SC,ST) | Weight (kg): | ≤1KG |
| Battery Operating Time (hour): | 12h | Dimension(mm): | 173mmx82mmx37mm |
| High Light: | FTTH Fiber Optic Reflectometer,1550nm Fiber Optic Reflectometer,Handheld Smart Mini OTDR |
||

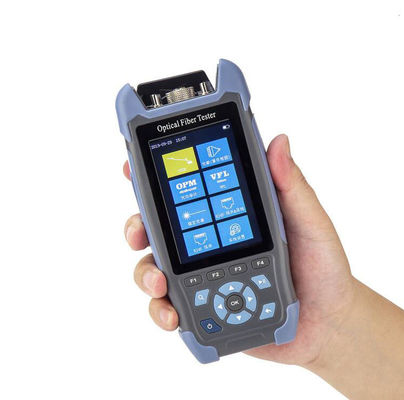

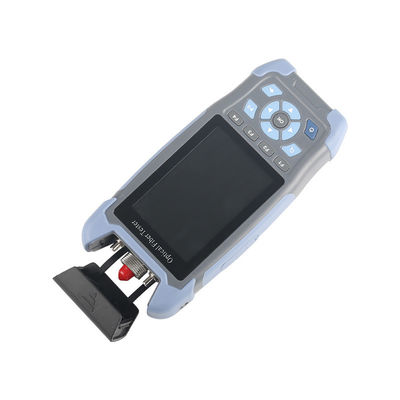

Mini OTDR with Visual Fault Locator/LS/OPM/RJ45 Cable Length Measurement
Hot Sale Fiber optic Reflectometre Equipment for FTTH Active Fiber Optic Live Test Price 1310 1550nm Smart Handheld Mini
| Mini OTDR | ||
| Model | FKEQU-094 S | FKEQU-094 D |
| Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Fiber Type | G.652 | |
| Dynamic Range | 22dB | 24dB/22dB |
| Event Blind Zone | 3m | |
| ATT Blind Zone | 8m | |
| Test Range | 500m~60km | |
| Pulse Width | 3ns~10us | |
| Ranging accuracy | ±(1m+ Sampling interval +0.005%×Test distance) | |
| Loss accuracy | ±0.05dB/dB | |
| Sampling Points | 16k~128k | |
| Sampling resolution | 0.05m~8m | |
| Reflection accuracy | ±3dB | |
| Data Storage | Internal:≥600;External:TF Card | |
| Laser Safety Level | Class Ⅱ | |
| File format | SOR Standard file format | |
| Connector | FC/UPC(Interchangeable SC,ST) | |
| OPM | ||
| Wave Range | 800nm~1700nm | |
| Interface Type | Universal Joint FC/SC/ST | |
| Test Range | -50dBm~+26dBm | |
| Uncertainty | ±5% | |
| Frequency Identification | CW/270/330/1k/2kHz | |
| Calibration wavelength | 850/980/1300/1310/1490/1550/1625/1650nm | |
| LS | ||
| LD Type | FP-LD | |
| Wavelength | 1550nm±20nm | 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm | |
| Modulation Frequency | 270/330/1k/2kHz | |
| Stability | CW,±0.5dB/15min (Test after 15 minutes of preheating) |
|
| Connector | FC/UPC(Interchangeable SC,ST) | |
| VFL | ||
| Wavelength | 650nm±20nm | |
| Output Power | ≥10mW | |
| Mode | CW/1Hz/2Hz | |
| Connector | FC/SC/ST | |
| RJ45 Cable Length Measurement | ||
| Test Range | 300m | |
| Other Parameters | ||
| Display | 3.5 inch Color LCD | |
| Data Interface | Micro USB | |
| External storage | TF Card | |
| Power Supply | Polymer Li-Battery:3.7V,4000mAh Adapter:5VDC,2A |
|
| Battery Life | Standby>20h;Measuring time>12h | |
| Operating Temperature | -10℃~+50℃ | |
| Storage Temperature | -40℃~+70℃ | |
| Relative Humidity | 0~95%Non Condensing | |
| Size | 173mm×82mm×37mm | |
| Weight | ≤350g | |
