Product Details:
|

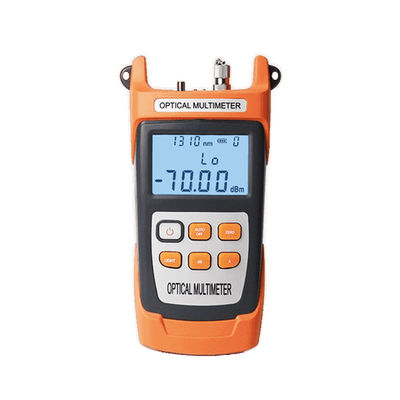

| Product Name: | Mini Optical Power Meter | Power Supply: | Alkaline Battery(3 AA 1.5V Batteries) |
|---|---|---|---|
| Battery Operating Time (hour): | 120 | Dimension(mm): | 186mmx100mmx50mm |
| Type: | Visual Fault Locator, Testers &Tools, | Weight: | 140/150g |
| High Light: | OPM Visual Fault Locator,FC Visual Fault Locator,ST Fiber Optic Multimeter |
||
| OPM | ||
| Wavelength range | 800nm~1700nm | |
| Optical connector | FC/SC/ST | |
| Detector type | InGaAs | |
| Power measurement range | -70dBm~+6dBm | -50dBm~+26dBm |
| uncertainty | ±5% | |
| Calibration wavelength | 850/980/1300/1310/1490/1550/1570/1625/1650nm | |
| Display resolution | Linear display: 0.1%, logarithmic display: 0.01dB | |
| Visual fault location (optional) | ||
| Working wavelength | 650nm±30nm | |
| Output Power | 2mW/10mW/30mW | |
| Operating mode | CW/1Hz/2Hz | |
| Optical connector | Universal joint FC/SC/ST | |
| Others | ||
| Power supply | Three AA Batteries/1500mA Rechargeable Lithium Battery (optional) | |
| Battery continuous working time | ≥120h(Optical power meter function) | |
| Auto shutdown time | 10min | |
| Operating temperature | -10°℃-+50℃ | |
| Storage temperature | -40°℃-+70℃ | |
| relative temperature | 0-95％ No condensation | |
| Size | 186mmx100mmx50mm | |
| Weight | 140g/150g | |
