Product Details:
|
Product Name: | Pen Type Visual Fault Locator | Application: | Telecom Network |
---|---|---|---|
Fiber Optic Adapter: | Universal Connector | Output Wavelength: | 650nm |
Use: | FTTH | Place Of Origin: | Shenzhen, China |
Highlight: | 20KM Visual Fault Locator,10mW Visual Fault Locator,VFL Pen Fiber Optic Tools And Equipment |
Introduction:

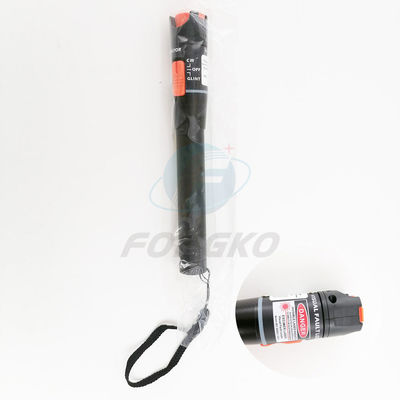

650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful
assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.
Features:
Support CW and 2Hz modulation work mode
Solid: use special laser end design to avoid damage when dropping on the floor.
Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.
Wavelength | 650nm±10nm |
Light source | FP-LD laser |
Output power | 1mw,10mw,20mw,25mW,30mW (optional) |
Connector | 2.5mm universal adapter |
Working mode | CW or 2Hz modulation |
Operating temperature | 0~+60 °C |
Storage temperature | -25~+70 °C |
Power | 2pcs AA battery |
Working hours | ≥10 |
Weight | 160g |
Dimension (mm) | 175*26*26 |
