Product Details:
|

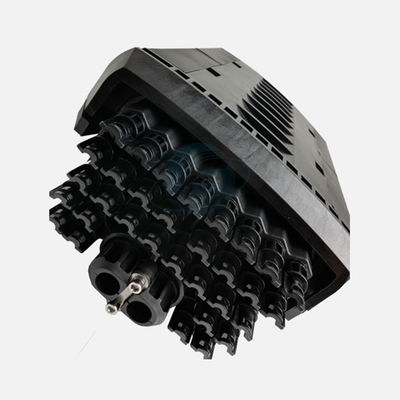

| Type: | FTTx Solutions | Product Name: | Fiber Optical Splice Closure |
|---|---|---|---|
| Material: | PC/PP | Working Temperature: | -40℃~+85℃ |
| Relative Humidity: | ≤85%(+30℃) | Color: | Black |
| High Light: | 96 Core fiber termination box,Waterproof fiber termination box,96 Core fibre connection box |
||
Features
Great mechanical performance
Great resisting aging performance
High airproof, damp proof and resisting, lightning strike performance
Can be place with the aerial cabal or buried in earth put in the pipeline
The in and out channels can be two to six
Applications
CATV system
Optical fiber communication
Testing equipment
FTTX
Fiber optic network convergence
Optical fiber access network
Fiber data transmission
Optical fiber video transmission
Fiber multimedia system
Fiber ethernet
Photoelectric conversion system
| Model | FK-J088E |
| Size(mm) | 380*245*170 |
| Specification(core) | 32 |
| Single weight(kg) | 4.145 |
| QTY(piece) | 4 |
| Carton size(cm) | 52*42*37 |
| Gross weight(kg) | 17.8 |
| volume(m³) | 0.0808 |
| Inlet/outlet Ports | 2/32 |
| Splice tray type | 24 Cores |
| Maximum number of splice trays | 4pcs 24C Trays |
