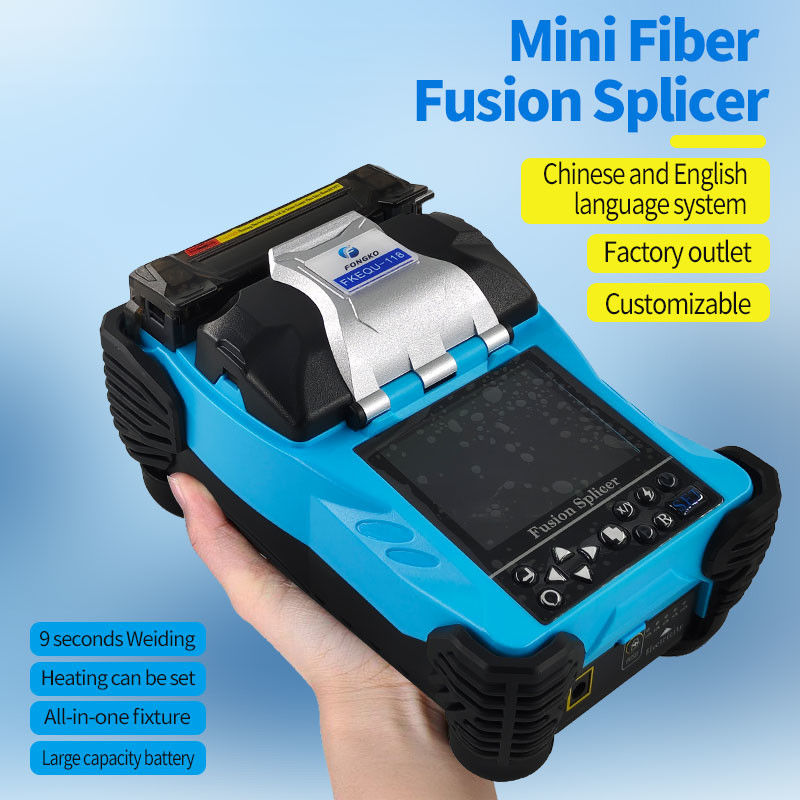

Product Details:
|
| Product Name: | Fiber Optic Fusion Splicer | Applicable Cable: | Optical Fiber Cable Splicing |
|---|---|---|---|
| Language: | (Chinese/English) 2 Languages | Application: | Construction, Inspection, Maintenance Of Fiber Cable |
| Splicing Loss: | 0. 02dB (SM) , 0. 01dB (MM) 0. 04dB (DS/NZDS) | Tension Test: | Standard 2N(optional) |
| High Light: | G.652 Fiber Optic Splicing Machine,G.657 Fiber Optic Splicing Machine,SM Fiber Cable Fusion Splicer |
||
|
Applicable optical fiber
|
SM(G.652&G.657),MM(G.651),DS(G.653),NZDS(G.655) and self-defined optical fiber typesand self-defined optical fiber types
|
|
Splicing loss
|
0. 02dB (SM) , 0. 01dB (MM) 0. 04dB (DS/NZDS)
|
|
Return loss
|
Over60dB
|
|
Typical splicing duration
|
9 seconds
|
|
Typical heating duration
|
26 seconds (configurable heating time and adjustable heating temperature )
|
|
Optical fiber alignment
|
Precise alignment, fiber core alignment, cladding alignment
|
|
Optical fiber diameter
|
Cladding diameter 80~150μm, coating layer diameter 100~1000μm
|
|
Cutting length
|
Coating layer below 250μm:8~16mm；coating layer 250~1000μm:16mm
|
|
Tension test
|
Standard 2N(optional)
|
